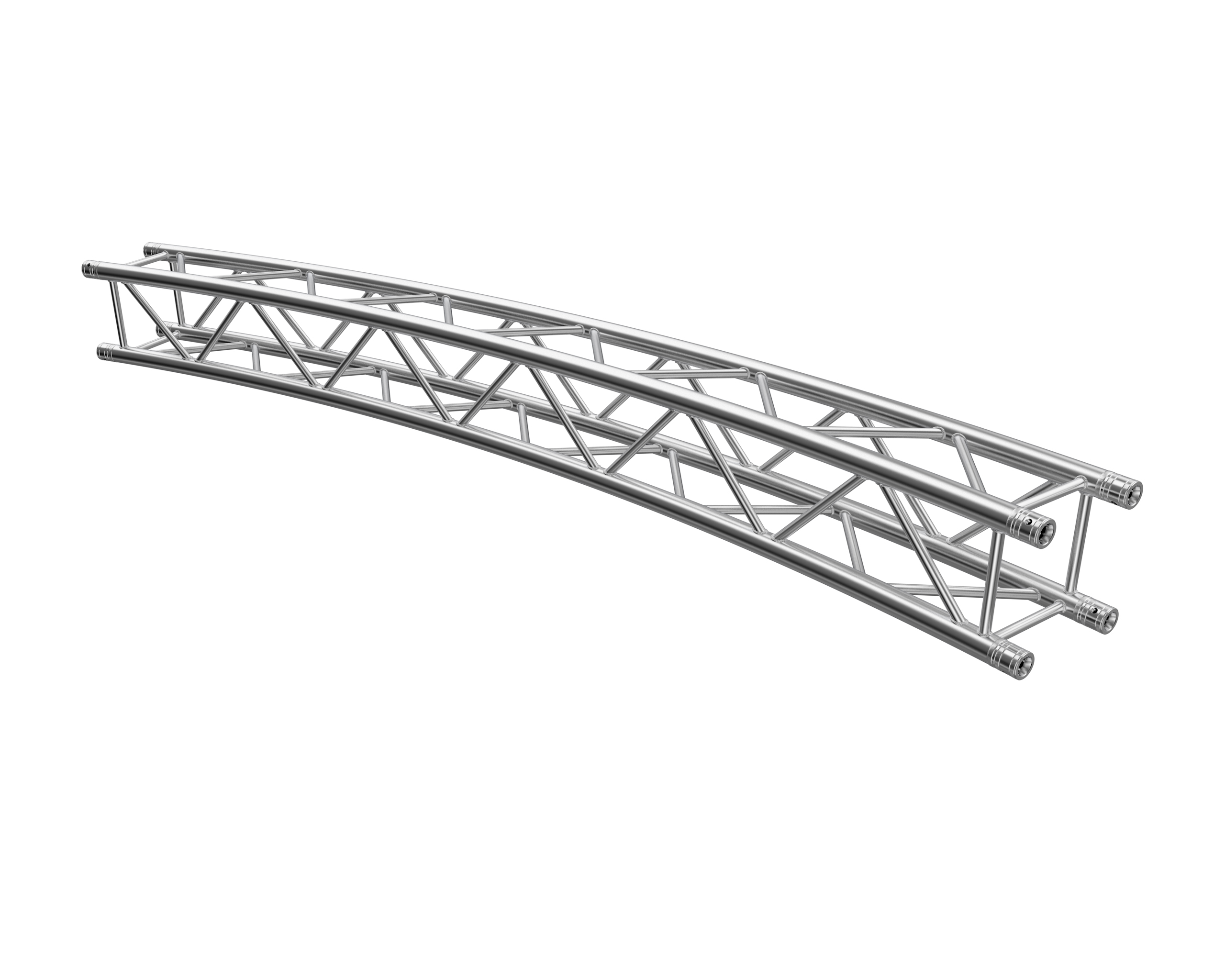

F34 circle piece for Ø 11,0m 30°
SKU:
F34R55-30
EAN: 4042659206262
The F34 truss series by Global Truss is a TÜV approved 4-point system with an external dimension of 29cm. Due to its perfect load capacity in relation to its weight and dimensions this system is one of the most commonly used. Exhibition stands and shop fittings as well as stage roofs and other outdoor applications can be built with the trusses of the F34 system. The system off ers a maximum span of up to 18 meters.

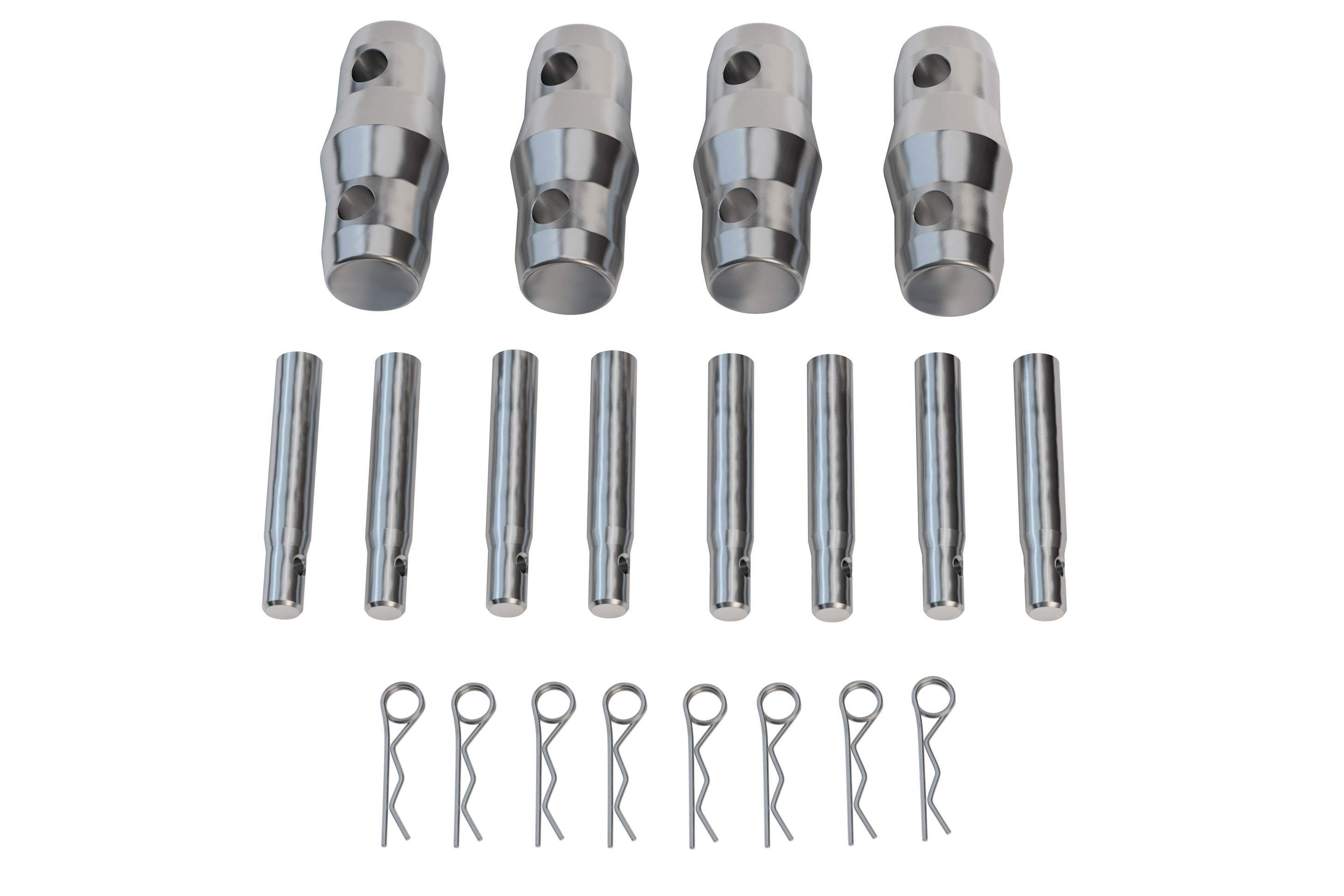

The F34 truss is built with 50 x 2mm main tubes and 20 x 2mm diagonal braces of aluminium. The truss pieces are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.
Non-binding price recommendation
€630.00
Interested in this product?
Register now
General
| Colour: | Aluminum |
|---|---|
| Material: | Al EN AW-6082 T6 |
| TÜV certificate: | No |
Technical Data
| Edge dimension: | 29 cm |
|---|---|
| Number of points: | 4-point |
| System: | F34 |
| Type: | circle |
Circle
| Diameter circle: | 11000 mm |
|---|---|
| Excerpt: | 30° |
Main pipe
| Diameter main pipe: | 50 mm |
|---|---|
| Wall thickness main pipe: | 2 mm |
Brace
| Diameter Brace: | 20 mm |
|---|---|
| Wall thickness Brace: | 2 mm |
Shipping Data
| Length: | 2850 mm |
|---|---|
| Width: | 500 mm |
| Height: | 300 mm |
| Weight: | 18 kg |
| PU: | 0 |
