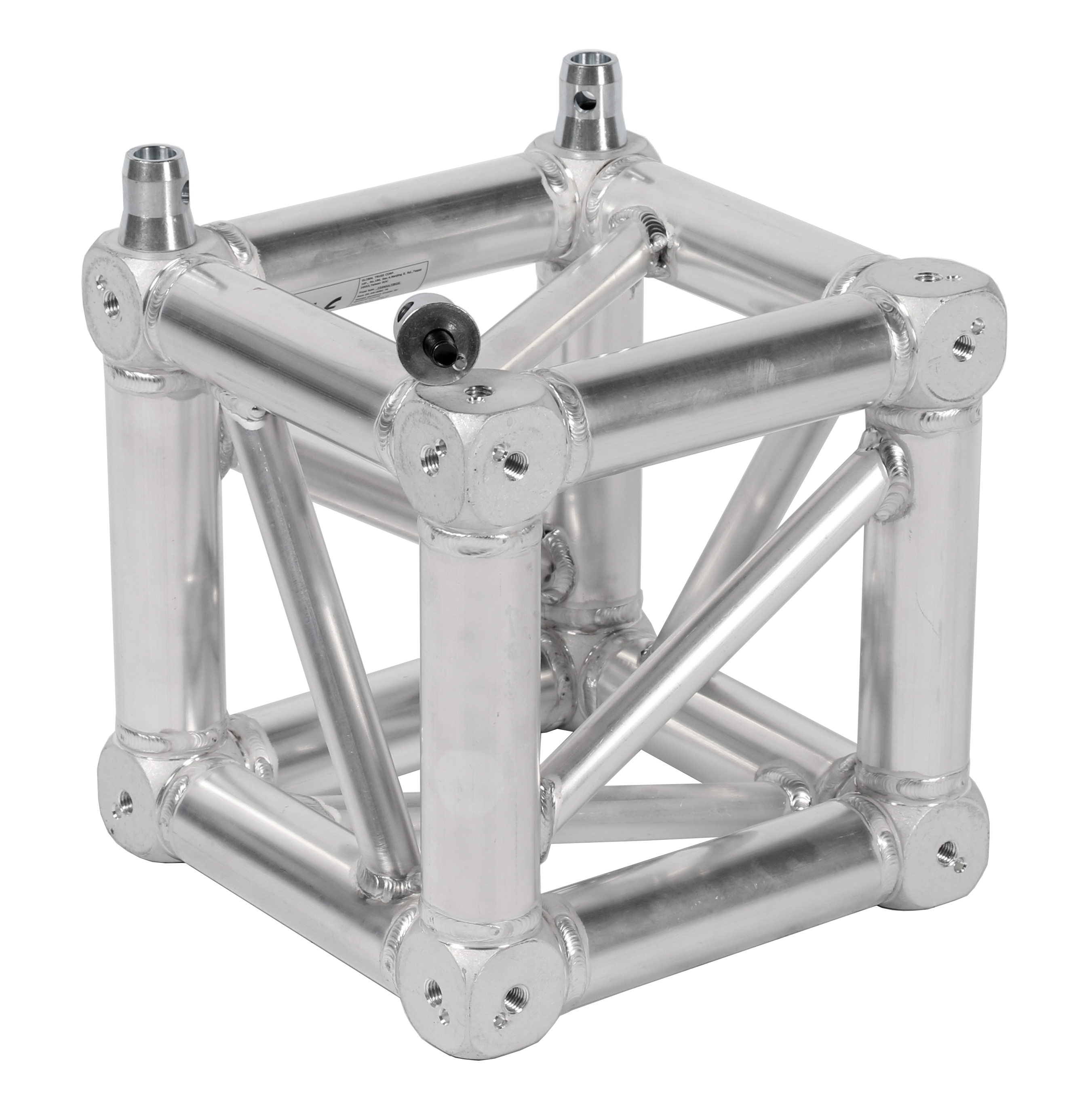

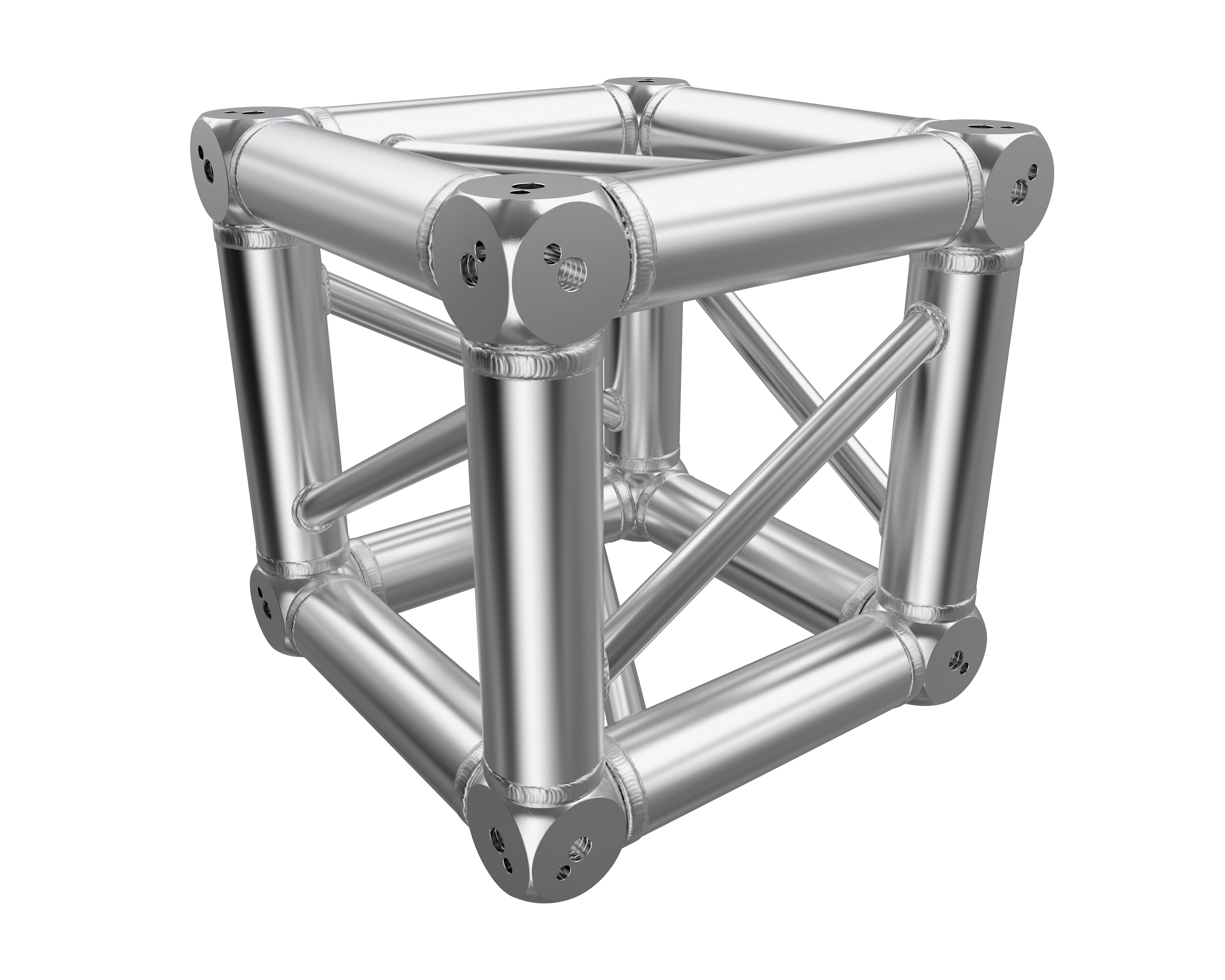

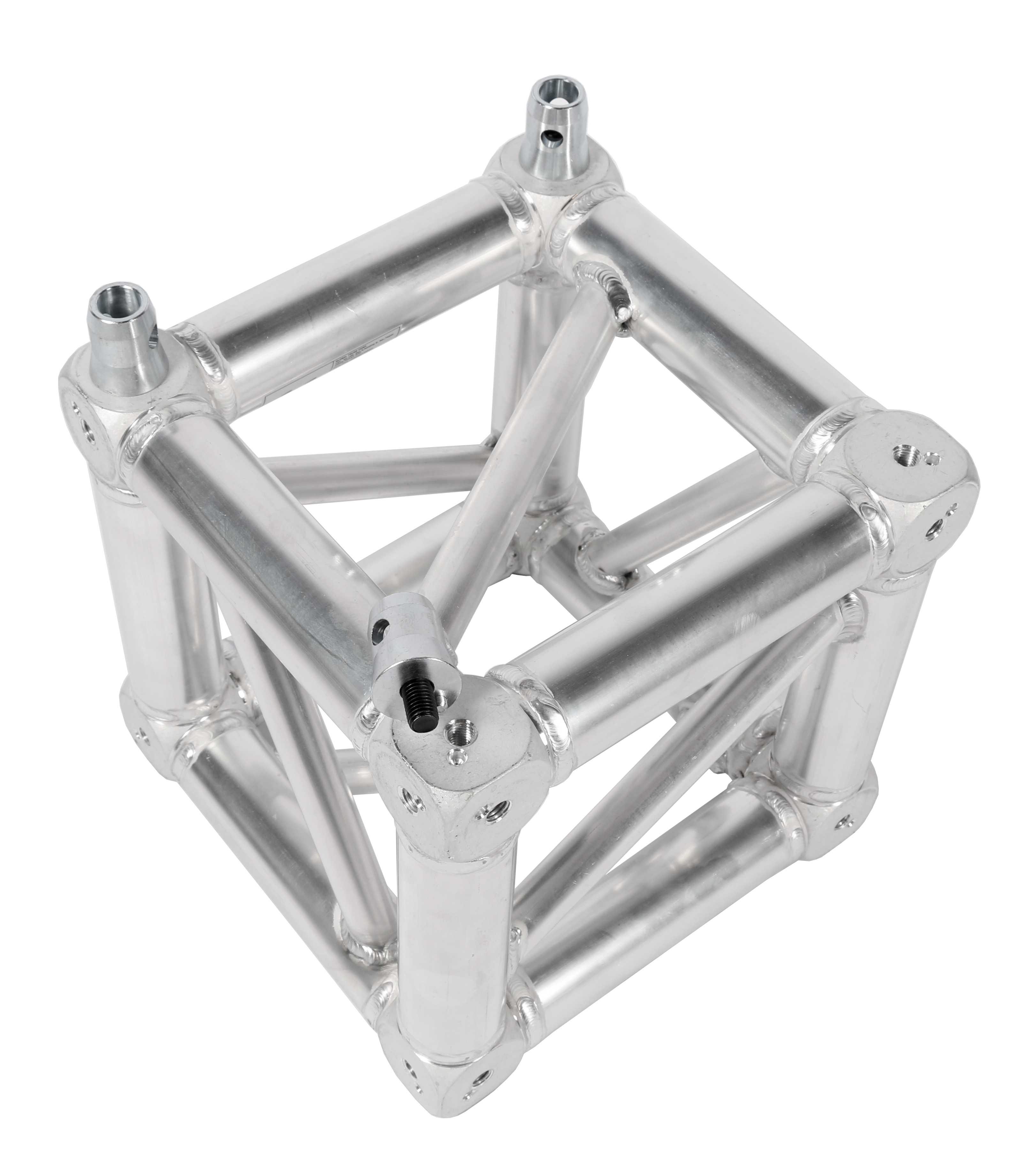

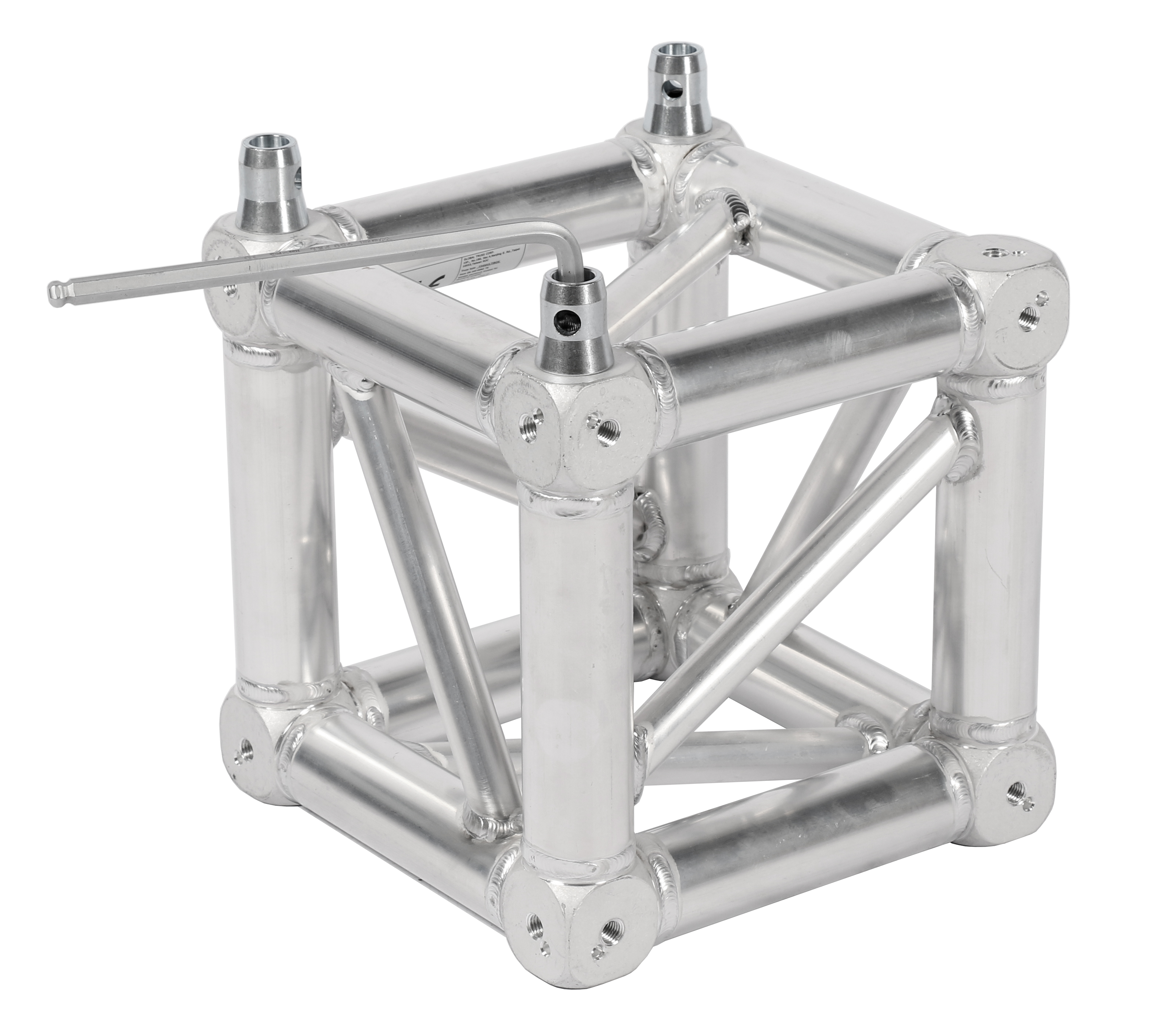

F34 Multi Boxcorner
SKU:
F34MULTIBOX
EAN: 4042659012443
- Lieferung erfolgt ohne Halbkonusse

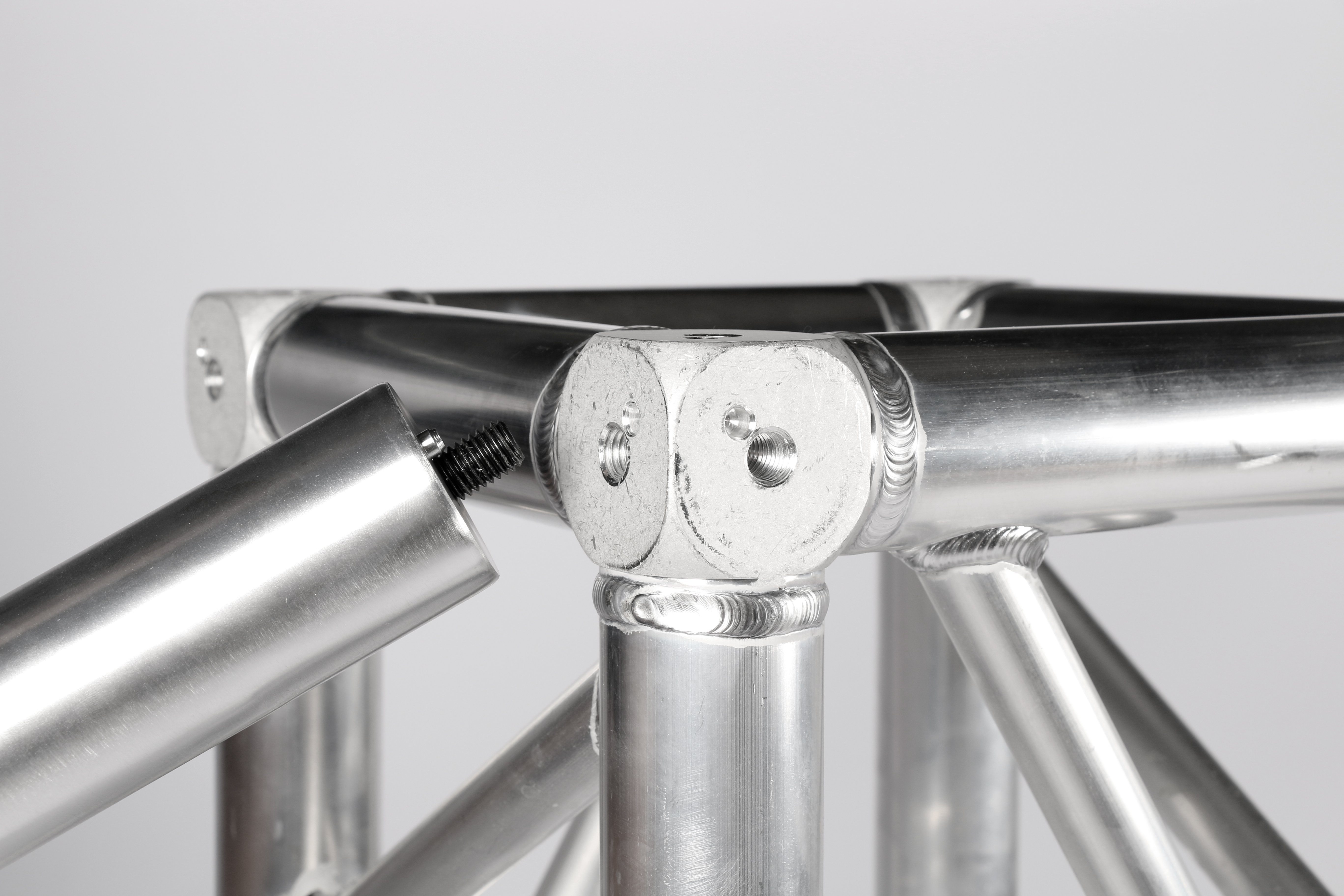

- M12 Gewinde
Non-binding price recommendation
€384.00
Interested in this product?
Register now
The F34 truss series by Global Truss is a TÜV approved 4-point system with an external dimension of 29cm. Due to its perfect load capacity in relation to its weight and dimensions this system is one of the most commonly used. Exhibition stands and shop fittings as well as stage roofs and other outdoor applications can be built with the trusses of the F34 system. The system off ers a maximum span of up to 18 meters.
The F34 truss is built with 50 x 2mm main tubes and 20 x 2mm diagonal braces of aluminium. This truss and all other Global Truss series can be powder coated in every RAL colour.
General
| Material: | Al EN AW-6082 T6 |
|---|---|
| Colour: | Aluminum |
Technical Data
| Number of points: | 4-point |
|---|---|
| Edge dimension: | 29 cm |
| System: | F34 |
| Type: | corner |
Main pipe
| Diameter main pipe: | 50 mm |
|---|---|
| Wall thickness main pipe: | 3 mm |
Brace
| Diameter Brace: | 20 mm |
|---|---|
| Wall thickness Brace: | 2 mm |
Hardware
| Dimensions (L/W/H): | 290 x 290 x 290 mm |
|---|
Shipping Data
| Length: | 290 mm |
|---|---|
| Width: | 290 mm |
| Height: | 290 mm |
| Weight: | 5.73 kg |
| PU: | 1 |
straight
circle
corner
special part
