Selflock Hook Easy 48-80/30/150kg
SKU:
8073-1
EAN: 4251665071799
- Fast and easy fixture
- Compatibility: 48-80 mm
- Width: 30 mm
- Tensile load: 150 kg
Non-binding price recommendation
€32.50
Interested in this product?
Register now

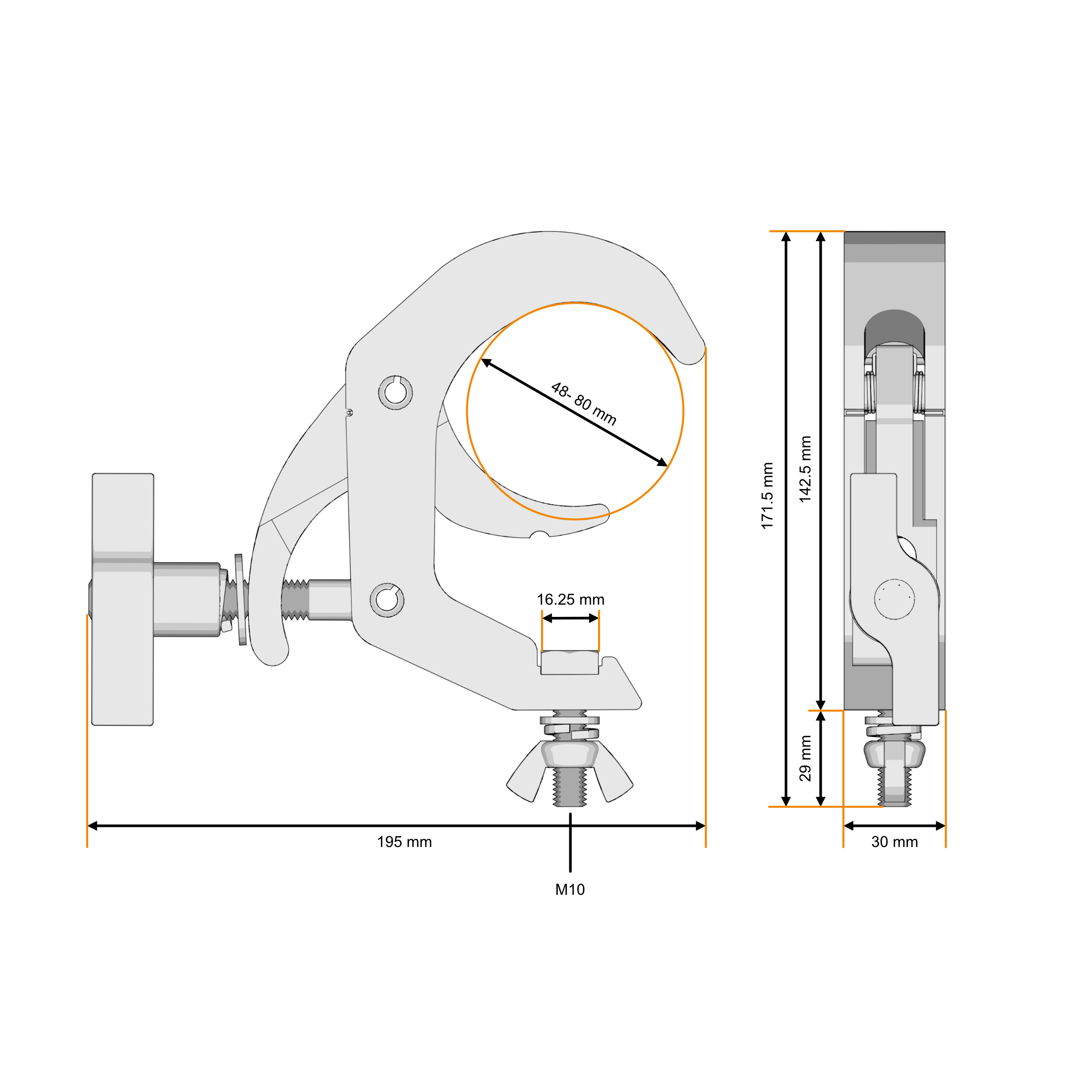

This Selflock Hook Easy can be used with tube diameters from 48 to 80 mm and is a quick and easy way to attach equipment to a truss. Due to its special design with a screw coming off the side, it can never get caught on the equipment or in the truss. Convenient locking by the large wing nut is thus possible at any time. With a tensile load of 150kg SWL, it is also suitable for carrying larger devices.
General
| Approved by: | DIN EN 13814:2004 |
|---|---|
| Compatibility: | 48-80 mm |
| Colour: | Aluminum |
| TÜV certificate: | No |
| Material: | Aluminum 6061 T6 |
Fittings
| Clasp: | M12 wing nut |
|---|---|
| Retaining screw: | M10 device screw, snap ring, washer |
Technical Data
| Width: | 30 mm |
|---|---|
| Tensile load: | 150,00 kg |
Shipping Data
| Length: | 200 mm |
|---|---|
| Width: | 170 mm |
| Height: | 30 mm |
| Weight: | 0.671 kg |
| PU: | 20 |
