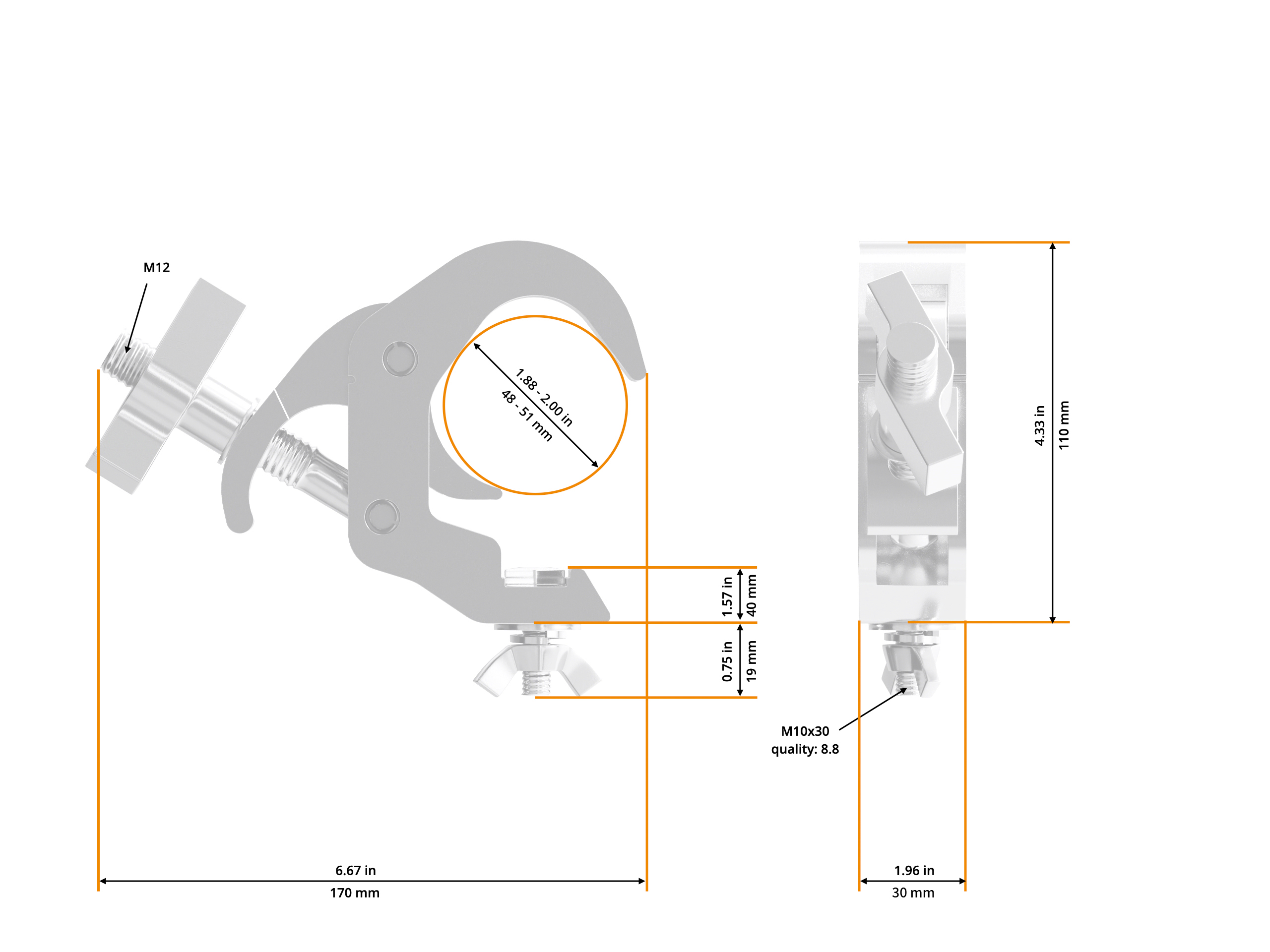

Selflock Hook Easy 48-51/30/250kg
SKU:
5073-1
EAN: 4042659141228
The Self-locking Easy hook is a fast and simple way to attach devices to a truss. The special design with lateral screw prevents it from hooking itself to the devices or to the cross beam. The large wing nut makes it easy to lock the coupler in place.
Non-binding price recommendation
€20.90
Interested in this product?
Register now
General
| Approved by: | DIN EN 13814:2004 |
|---|---|
| Colour: | Aluminum |
| Compatibility: | 48-51 mm |
| Material: | Aluminum 6061 T6 |
| TÜV certificate: | Yes |
Fittings
| Clasp: | M12 wing nut |
|---|---|
| Retaining screw: | M10 device screw, snap ring, washer |
Technical Data
| Tensile load: | 250,00 kg |
|---|---|
| Width: | 30 mm |
Shipping Data
| Length: | 150 mm |
|---|---|
| Width: | 120 mm |
| Height: | 30 mm |
| Weight: | 0.48 kg |
| PU: | 25 |
