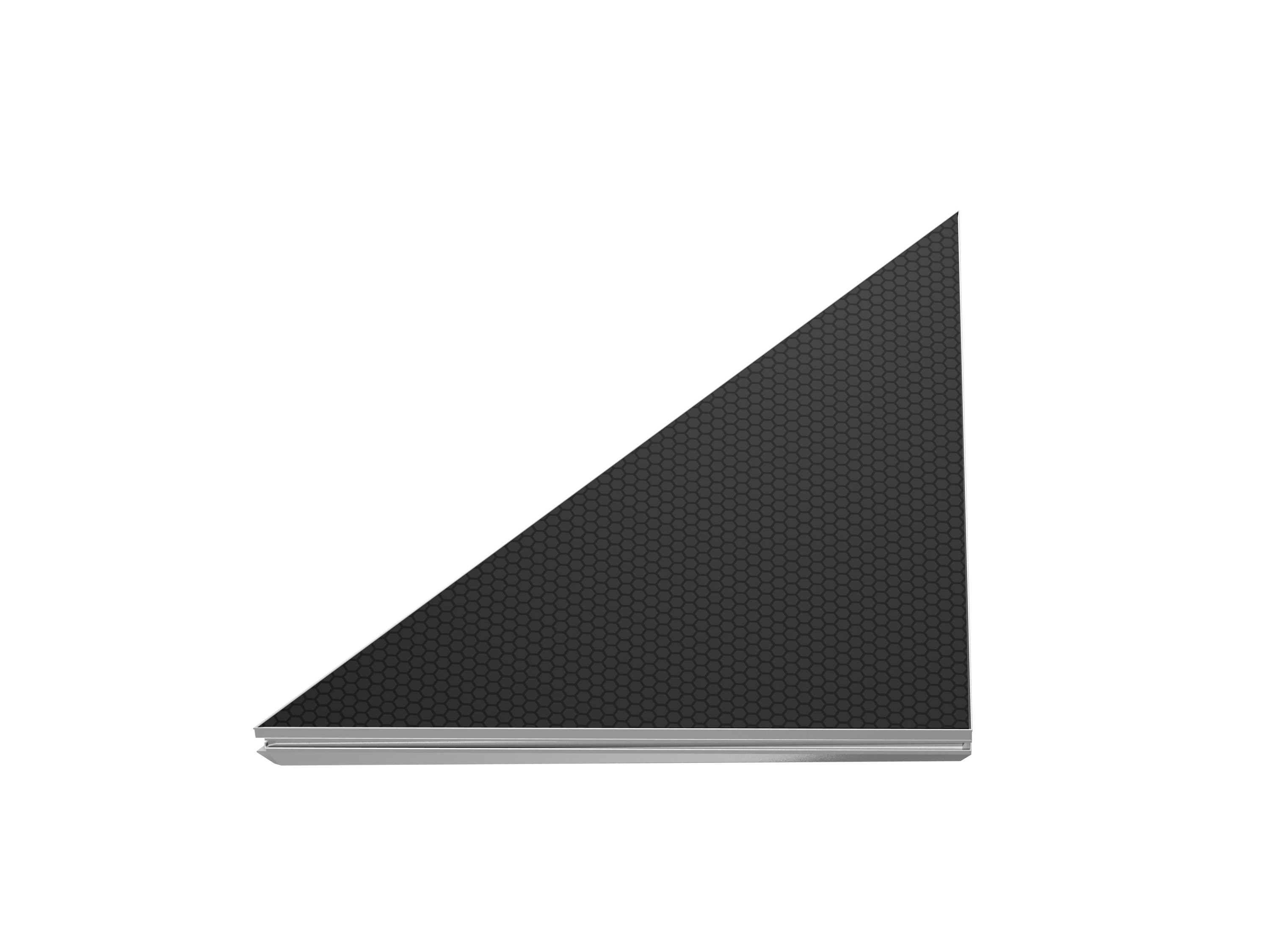

GT Stage Deck Triangular 90° 100x100
SKU:
102027
EAN: 4251665202445
- Made in Europe
- Dimensions: 100 x 100 cm
- Maximum load 750 kg/m²
Non-binding price recommendation
€468.25
Interested in this product?
Register now

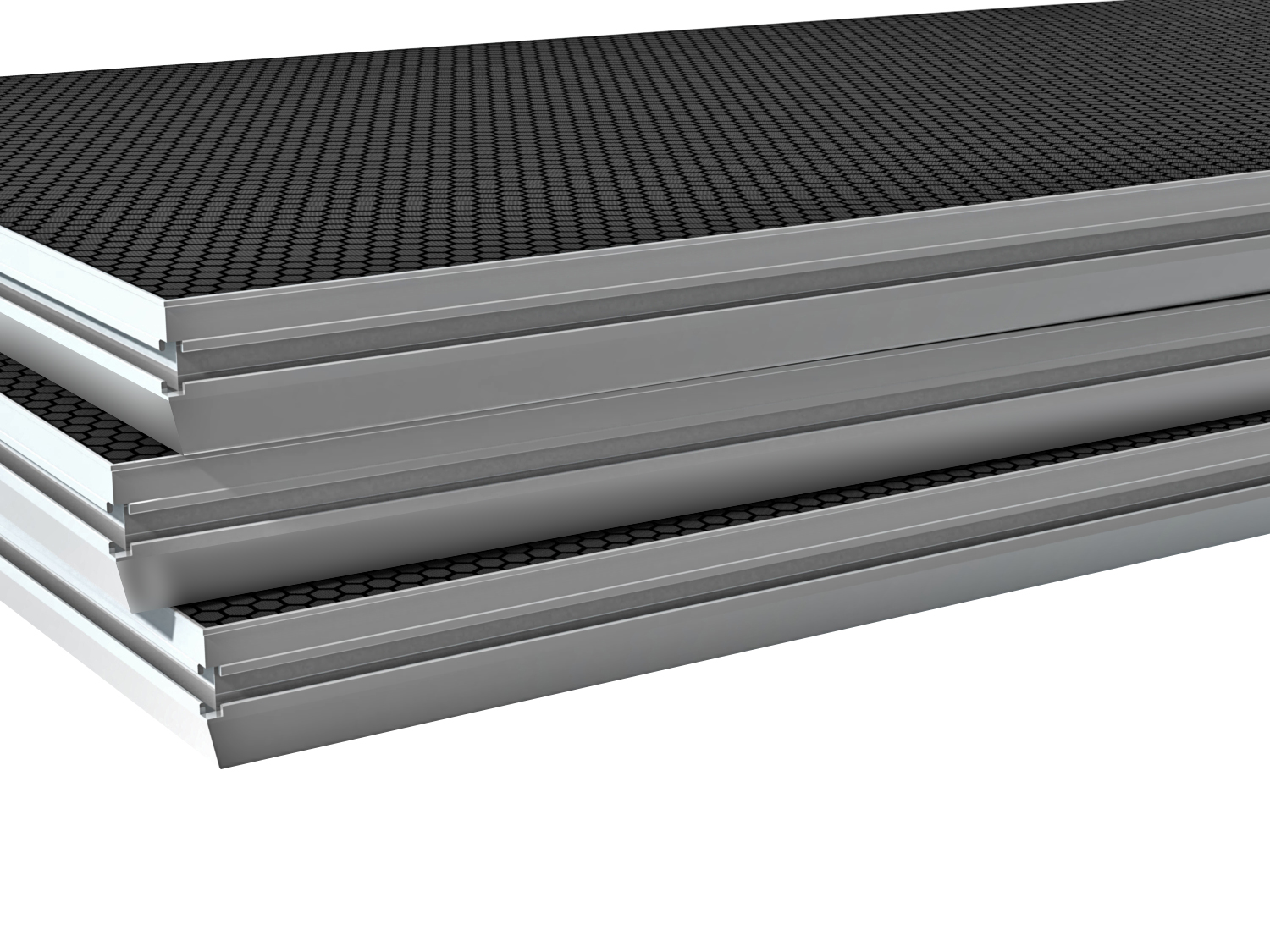

The GT Stage Deck Outdoor platform is a mobile stage system for all applications in outdoor and of course also indoor. The application areas are versatile: concerts, theater, school and community halls, exhibitions, fashion events and any other event.

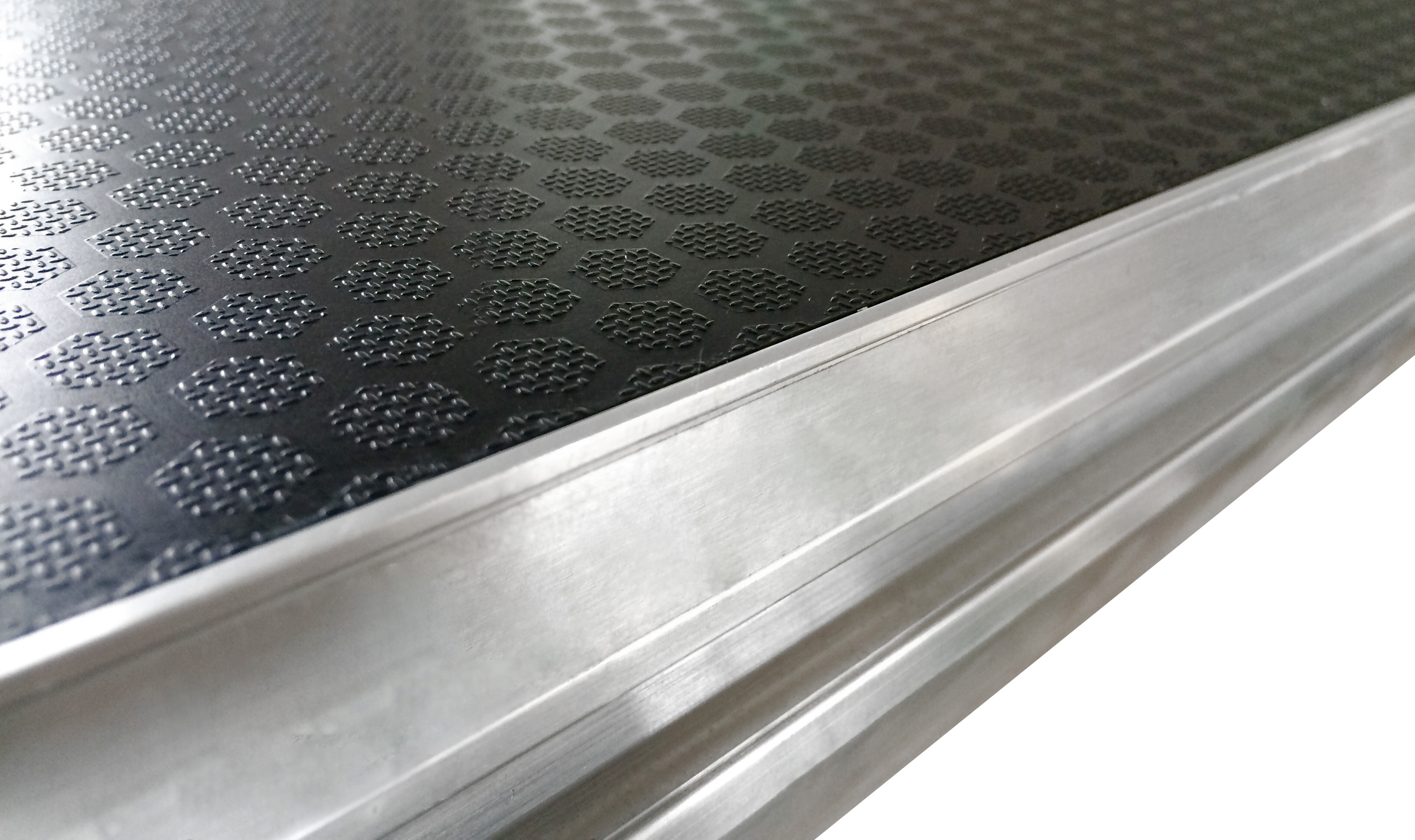

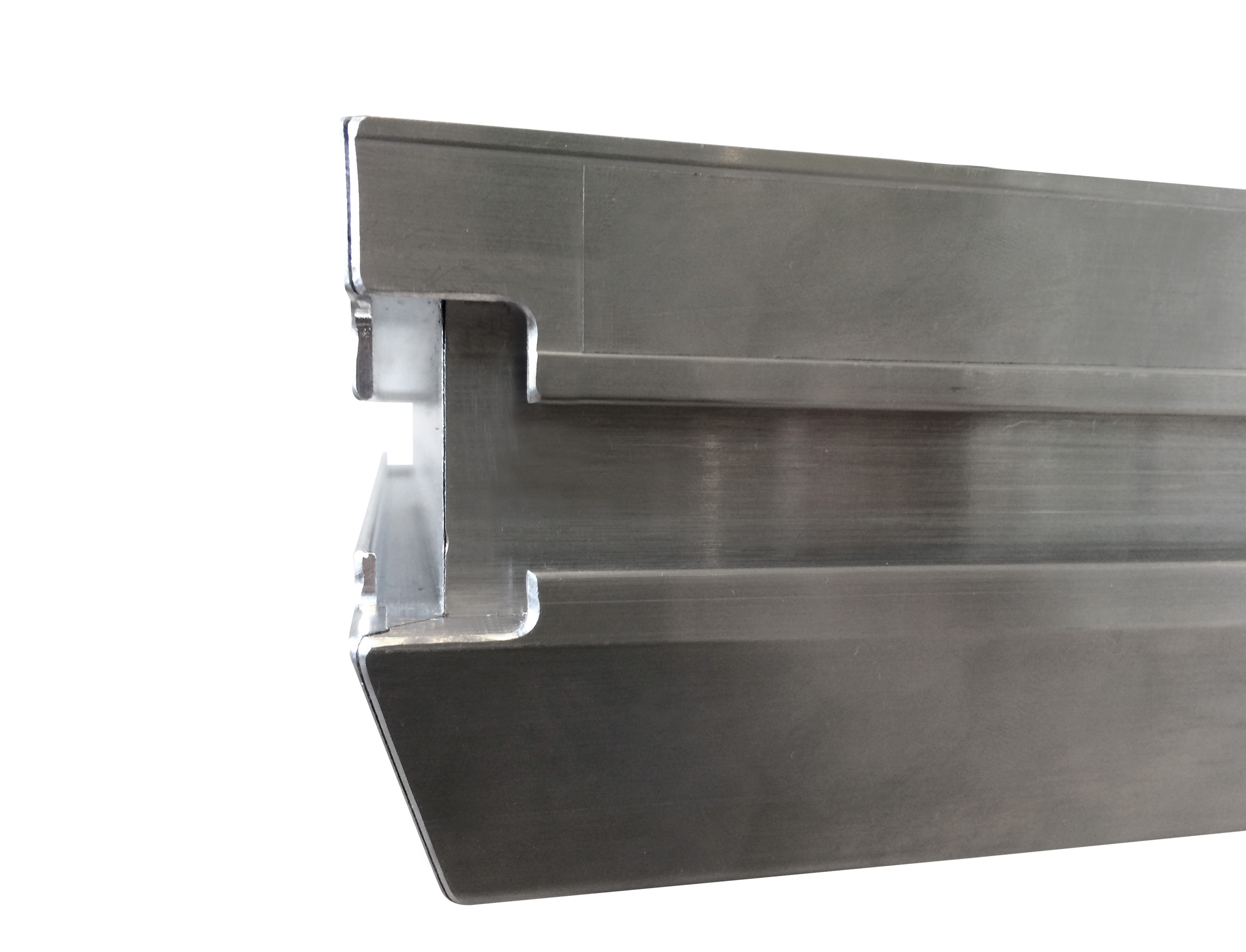

The aluminum profile offers enormous flexibility and compatibility with many manufacturers.

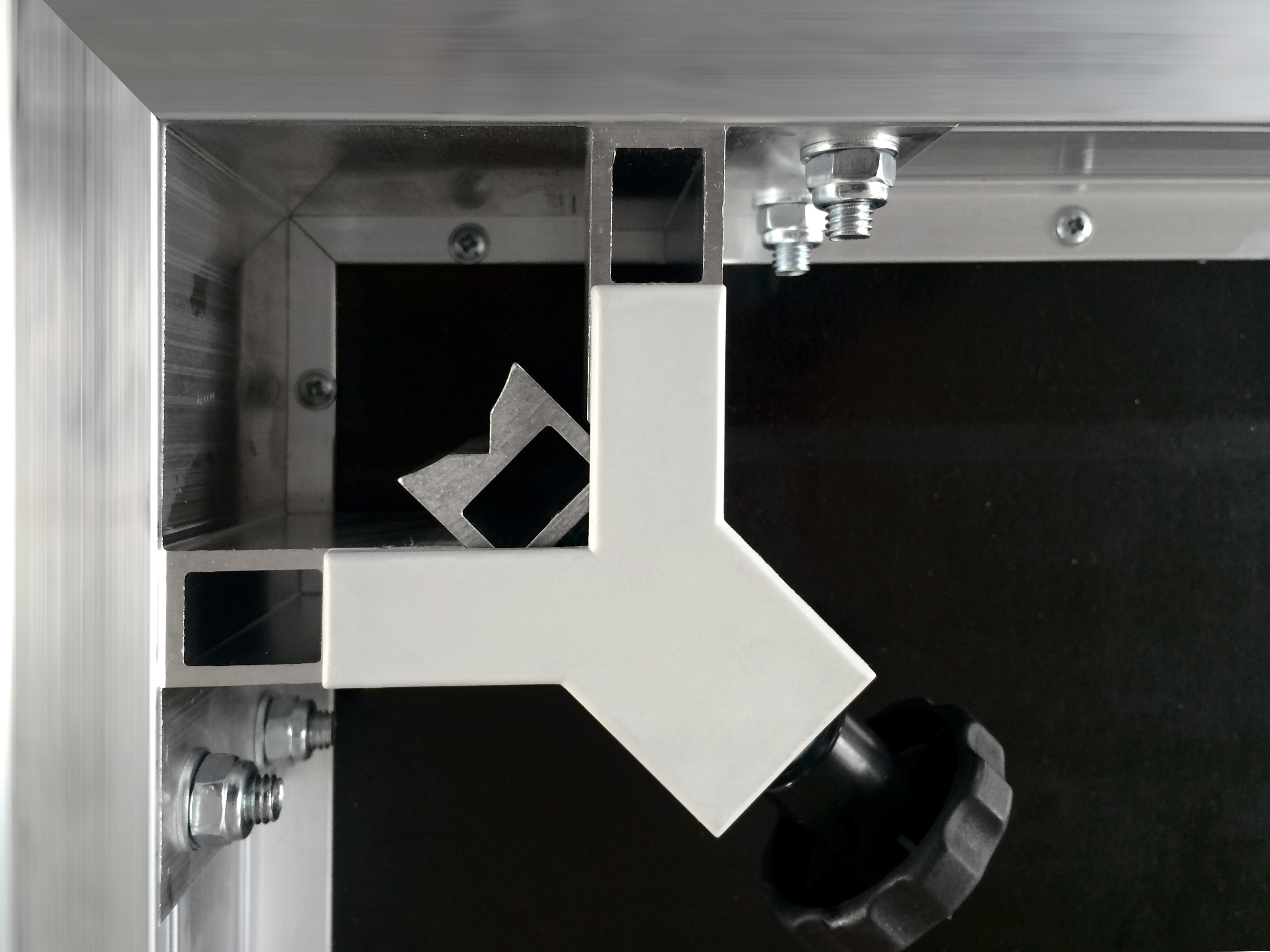

Due to the exterior channel the optional fall protection can be fitted. With the three supplied "Deck Leveller" (Code: 115148) you can connect the platforms with each other and bring the platforms to the same level.
The absorption fort he feets are specifically designed for round and square plug feets and can hold up to 60x60mm dimensions.
For a fixed connection with each other there is a optional platform bracket available (Code: 115147).
Other surfaces on request.
General
| TÜV certificate: | No |
|---|
Technical Data
| Max. Force: | 750 kg/m² |
|---|---|
| Max. Height: | 1 m |
| Type: | special part |
Hardware
| Corner profile: | Universal pressure cube |
|---|---|
| Frame: | Aluminum |
| Platform legs: | max. 60 x 60 mm |
| Surface: | 12mm silk-screen printing board |
| Weight: | 16,50 kg |
| Dimensions (L/W/H): | 1020 x 1020 x 100 mm |
Shipping Data
| Length: | 1020 mm |
|---|---|
| Width: | 1020 mm |
| Height: | 100 mm |
| Weight: | 16.5 kg |
| PU: | 1 |
Accessories
