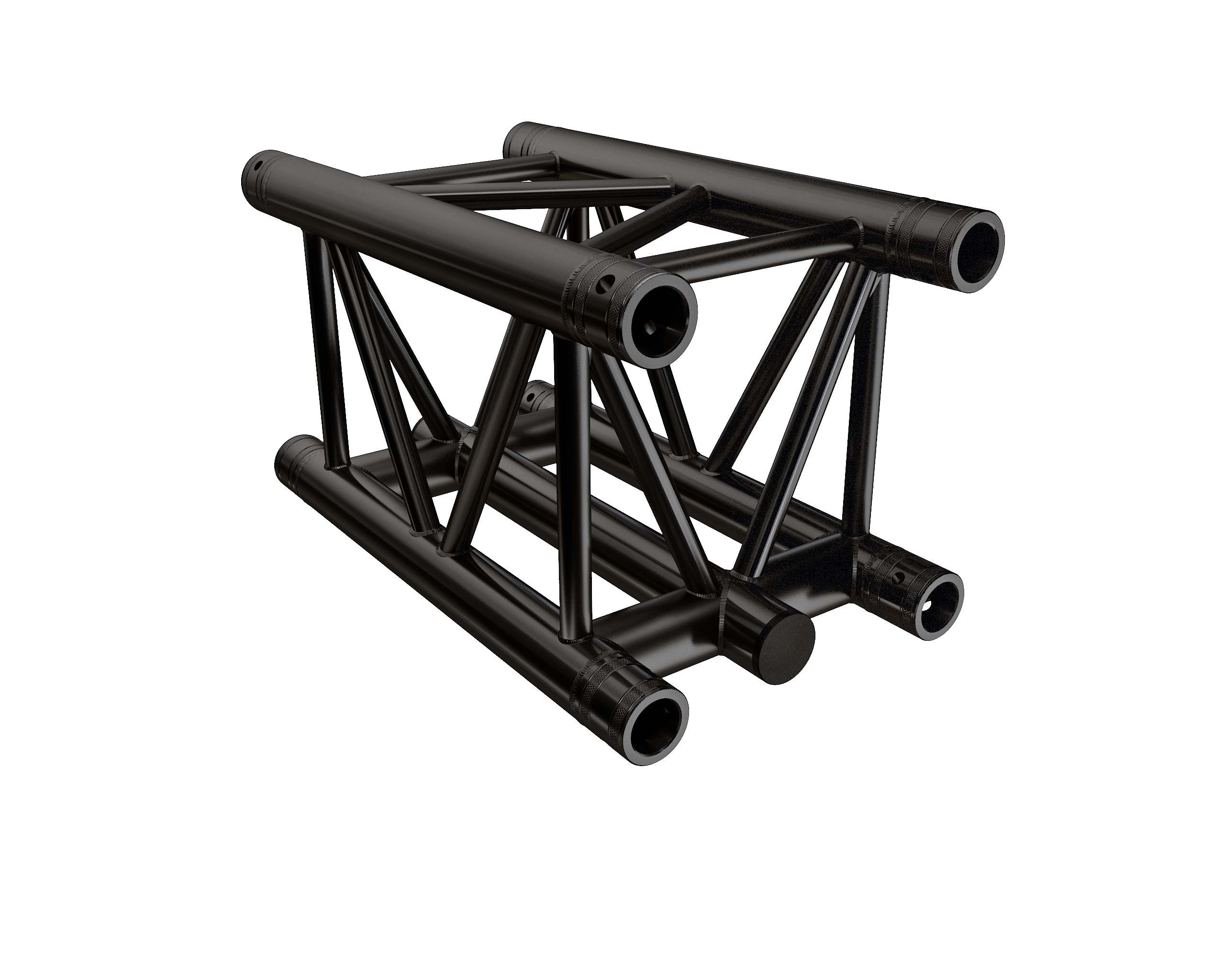

F35 50cm
SKU:
F35050
EAN: 4251665205163
This F35 Truss is based on the F34P 290mm x 290mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F34P Truss design, F35 Truss can connect to all standard F34 and F34P junctions or sleeve blocks so you use your existing F34/F34P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F35 Truss will not be limited to LED screen hanging applications.
Non-binding price recommendation
€282.00
Interested in this product?
Register now
General
| Colour: | Aluminum |
|---|---|
| Material: | Al EN AW-6082 T6 |
| TÜV certificate: | No |
Technical Data
| Edge dimension: | 29 cm |
|---|---|
| Number of points: | 5-point |
| System: | F35 |
| Truss length: | 50 cm |
| Type: | straight |
Main pipe
| Diameter main pipe: | 50 mm |
|---|---|
| Wall thickness main pipe: | 4 mm |
Brace
| Diameter Brace: | 20 mm |
|---|---|
| Wall thickness Brace: | 2 mm |
Hardware
| Dimensions (L/W/H): | 500 x 290 x 290 mm |
|---|
Shipping Data
| Length: | 500 mm |
|---|---|
| Width: | 300 mm |
| Height: | 300 mm |
| Weight: | 8.22 kg |
| PU: | 1 |
straight
