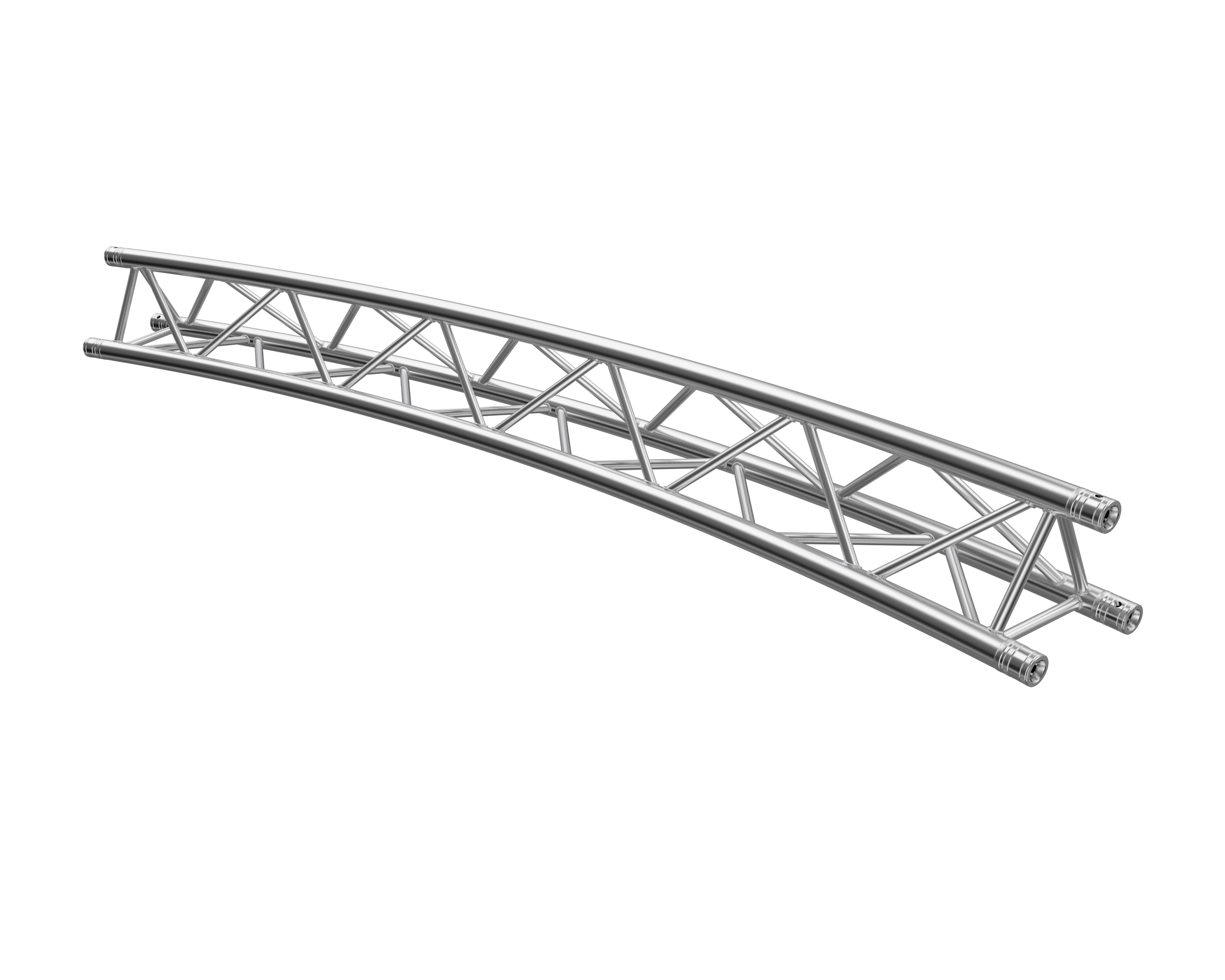

F33 circle piece for Ø 10,0m 30°
SKU:
F33R50-30
EAN: 4042659124924
The F33 truss series by Global Truss is a TÜV approved 3-point system with an external dimension of 29cm. Due to its shape it off ers the best ratio between transportation volume and load capacity from the F3x range. Exhibition stands and banner frames can be created perfectly with truss pieces from the F33 system. Furthermore the system can be used for permanent installations or similar. The system offers a maximum span of up to 18 meters.

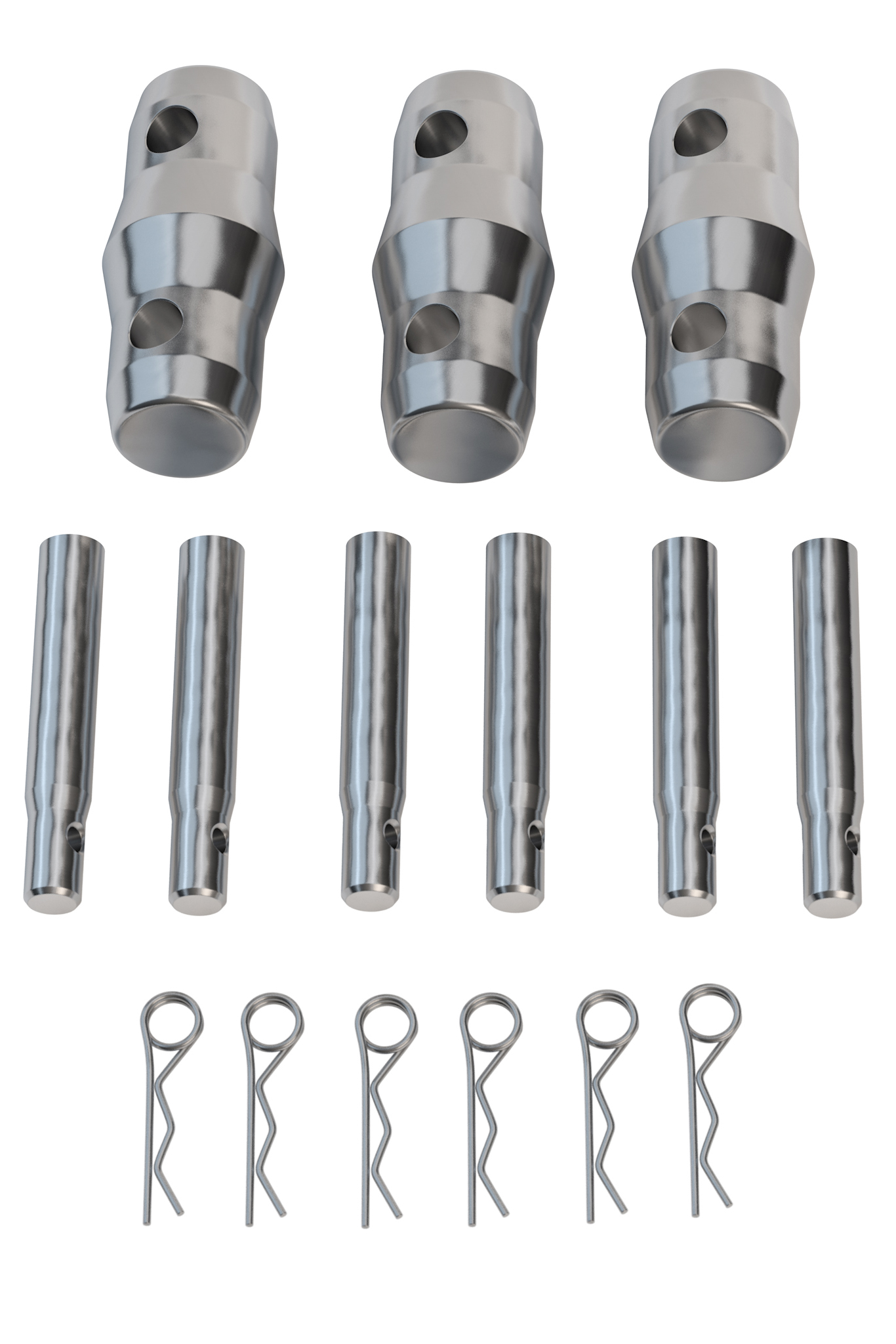

The F33 truss is built with 50 x 2mm main tubes and 20 x 2mm diagonal braces of aluminium. The truss pieces are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.
Non-binding price recommendation
€494.00
Interested in this product?
Register now
General
| Colour: | Aluminum |
|---|---|
| Material: | Al EN AW-6082 T6 |
| TÜV certificate: | No |
Technical Data
| Edge dimension: | 29 cm |
|---|---|
| Number of points: | 3-point |
| System: | F33 |
| Type: | circle |
Circle
| Diameter circle: | 1000 mm |
|---|---|
| Excerpt: | 30° |
Main pipe
| Diameter main pipe: | 50 mm |
|---|---|
| Wall thickness main pipe: | 2 mm |
Brace
| Diameter Brace: | 20 mm |
|---|---|
| Wall thickness Brace: | 2 mm |
Hardware
| Weight: | 11,40 kg |
|---|
Shipping Data
| Length: | 2200 mm |
|---|---|
| Width: | 300 mm |
| Height: | 300 mm |
| Weight: | 13.4 kg |
| PU: | 1 |
