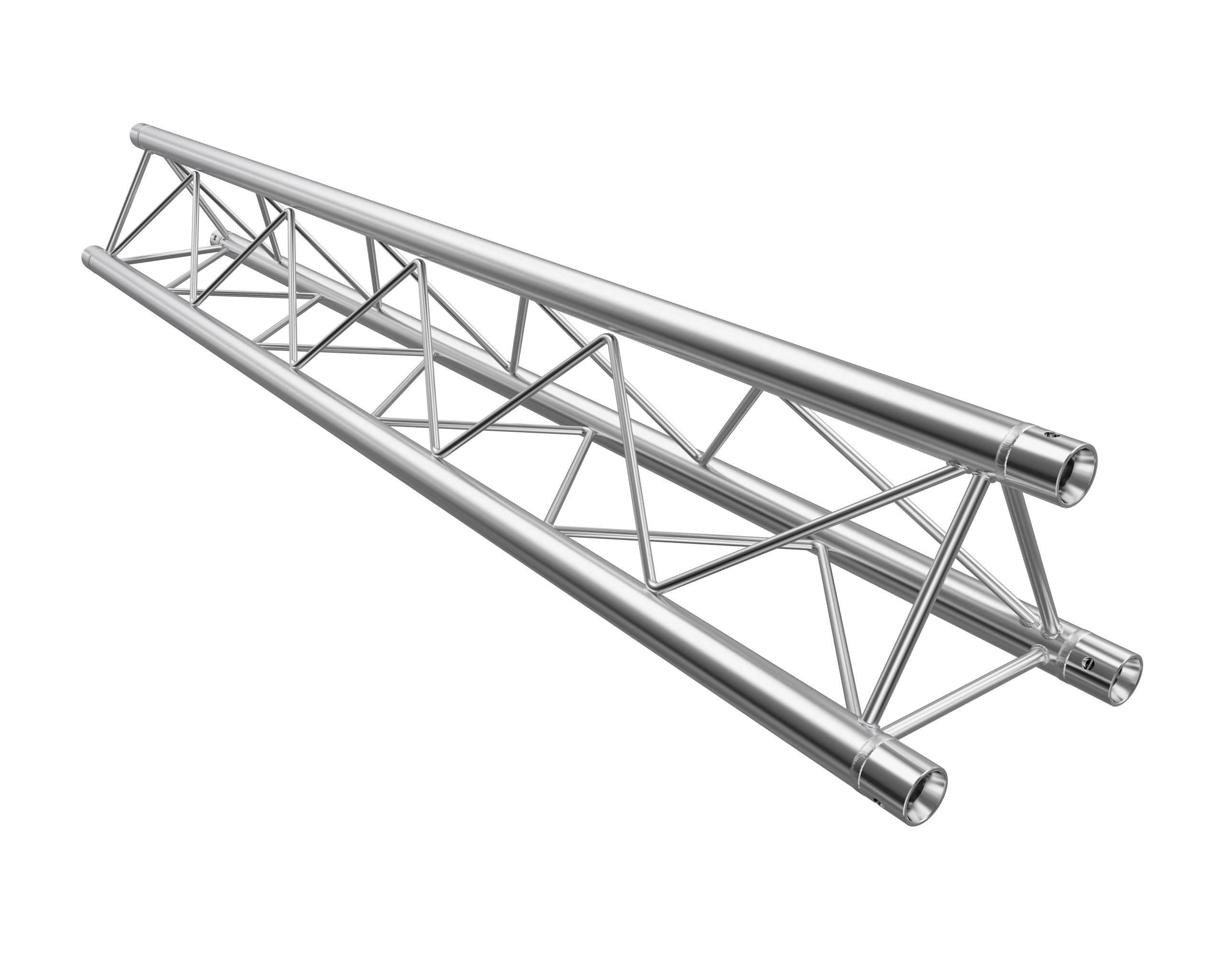

F23 150cm
SKU:
F23150
EAN: 4042659127789
- Length: 150 cm
- Pipe diameter: 35 mm
- Wall thickness: 1,6 mm
- TÜV Certified
- Conical connectors included
Non-binding price recommendation
€140.00
Interested in this product?
Register now
The F23 truss series by Global Truss is a TÜV approved 3-point system with an external dimension of 22cm. The series is perfect for small constructions, banner frames or permanent installations for lighting and sound along with use in shops. A maximum span of up to 10 meters can be used.
The F23 truss is built with 35 x 1.6mm main tubes and 8mm diagonal braces of aluminium. The truss lengths are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.
General
| Material: | Al EN AW-6061 T6 |
|---|---|
| TÜV certificate: | Yes |
| Colour: | Aluminum |
Technical Data
| Number of points: | 3-point |
|---|---|
| Edge dimension: | 22 cm |
| System: | F23 |
| Type: | straight |
| Truss length: | 150 cm |
Main pipe
| Diameter main pipe: | 35 mm |
|---|---|
| Wall thickness main pipe: | 1,60 mm |
Brace
| Diameter Brace: | 8 mm |
|---|
Hardware
| Weight: | 4,20 kg |
|---|---|
| Dimensions (L/W/H): | 1500 x 220 x 220 mm |
Shipping Data
| Length: | 1500 mm |
|---|---|
| Width: | 220 mm |
| Height: | 220 mm |
| Weight: | 4.2 kg |
| PU: | 1 |
